STK 4192 Power Amplifier

electronicecircuits, September 5, 2009August 19, 2023
STK4192 Amplifier

STK 4192 Power Amplifier Circuit

Features

AF Power Amplifier (Split Power Supply)
(50W + 50W min, THD = 0.4%)

• The STK4102II series (STK4192II) and STK4101V
series (high-grade type) are pin-compatible in the output
range of 6W to 50W and enable easy design.
• Small-sized package whose pin assignment is the same
as that of the STK4101II series
• Built-in muting circuit to cut off various kinds of pop
noise
• Greatly reduced heat sink due to substrate temperature
125°C guaranteed
• Excellent cost performance

stk4192 stereo  power amplifier circuit diagram
PARTS LIST
R156KΩ
R256KΩ
R31KΩ
R41KΩ
R5560Ω
R6560Ω
R7100Ω
R8100Ω
R956KΩ
R1056KΩ
R113.3KΩ
R123.3KΩ
R133.3KΩ 0.5W
R143.3KΩ 0.5W
R154.7Ω
R164.7Ω
R171KΩ 0.5W
R181KΩ 0.5W
C1400pF
C2400pF
C32.2µF
C42.2µF
C5100µF
C6100µF
C70.1µF
C80.1µF
C910µF
C1010µF
C1147µF
C1247µF
C13100µF
C1410µF
RL1100W 8Ω
RL2100W 8Ω
ICSTK4192II

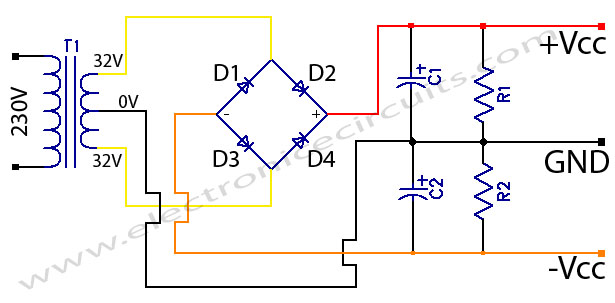

Power Supply

stk amplifier circuits power supply

PARTS LIST
D15A Diode
D25A Diode
D35A Diode
D45A Diode
R1500Ω 2W
R2500Ω 2W
C110000µF 63V
C210000µF 63V
T132-0-32 Volts 5 Amps Transformer
STK4192II stereo amplifier ic
STK4192II stereo amplifier IC

Specifications

Maximum supply voltage (Vcc max) ±52.5V

Recommended supply voltage (Vcc) ±35V

Recommended Load resistance (RL) 8Ω

Typical Muting voltage  –5V (Min: –2, max: –10)

Input impedance (Conditions: Output power 1W, Frequency 1kHz) 55 kΩ
