Musical Doorbell Circuit Diagram

electronicecircuits, September 18, 2010August 15, 2023
Musical Doorbell Circuit

Musical Doorbell Circuit Diagram

This musical doorbell circuit uses UM3481 A series IC.  It is intended for applications such as toys, door bells, music boxes, melody clock/timers and telephones. The UM3481A is designed to play the melody according to the previously programmed information and is capable of generating 16 songs with 3 instrument effects: piano, organ and mandolin. This door bell circuit can power up using 1.5v battery cell or two 1.5v battery cells.

Musical Doorbell Circuit Diagram

PARTS LIST
R182kΩ
R2180kΩ
C147pF
C22.2µF 16V
Q12SC828
LS14Ω 0.5W Speaker
PB1Push to On Switch
IC1Um3481A, UM3482A or UM3483A

This door bell circuit has very  low stand-by current. C1 and R1 act as the timing components for the built in oscillator. This IC also includes a preamplifier which provides a simple interface to the driver circuit. Q1 is used for driving the speaker.

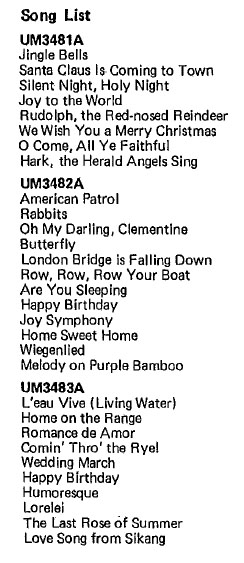

Um3481A, UM3482A and UM3483A song list
Song List

When you push the PB1 switch, playing one song and it is auto stop.
